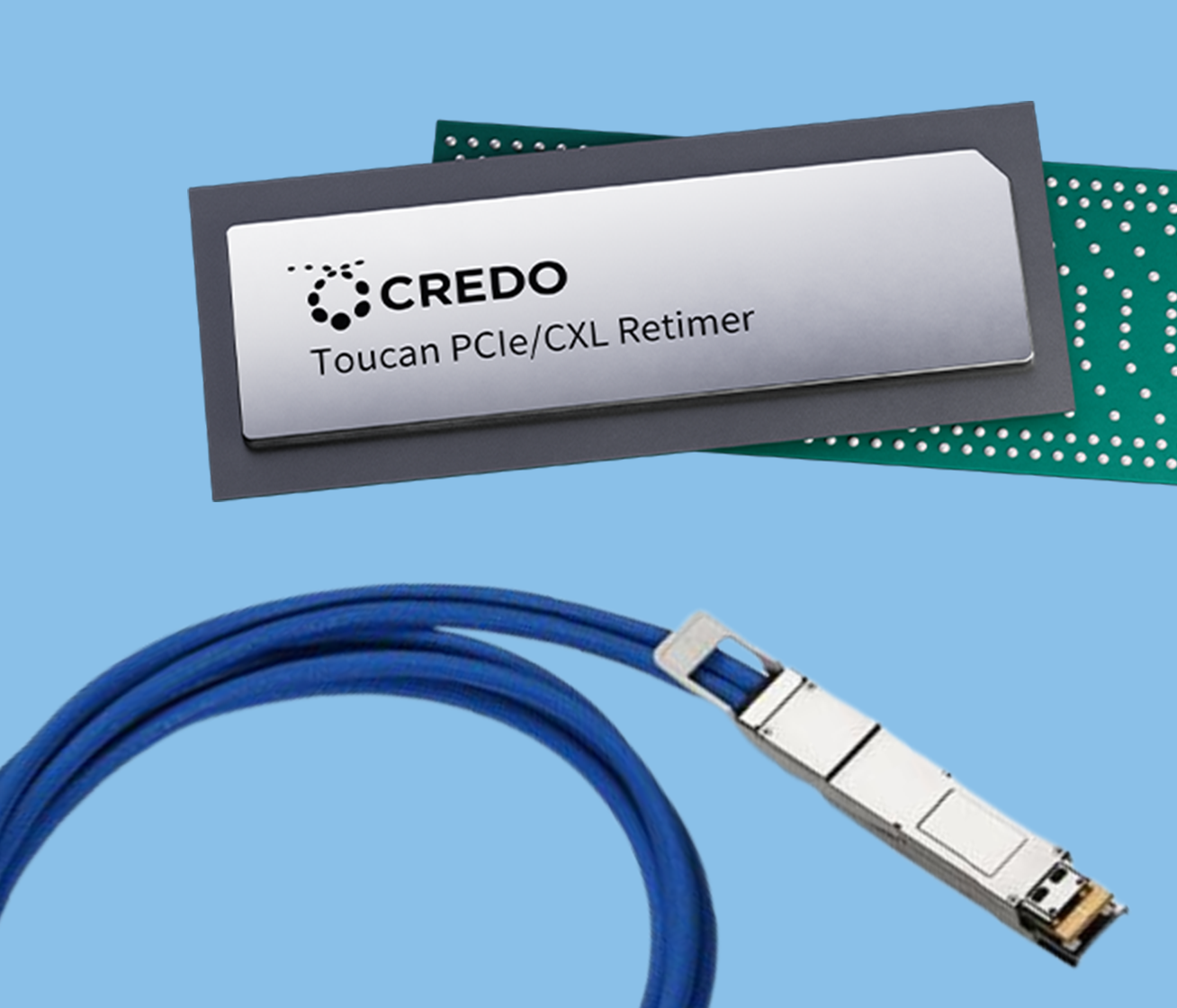

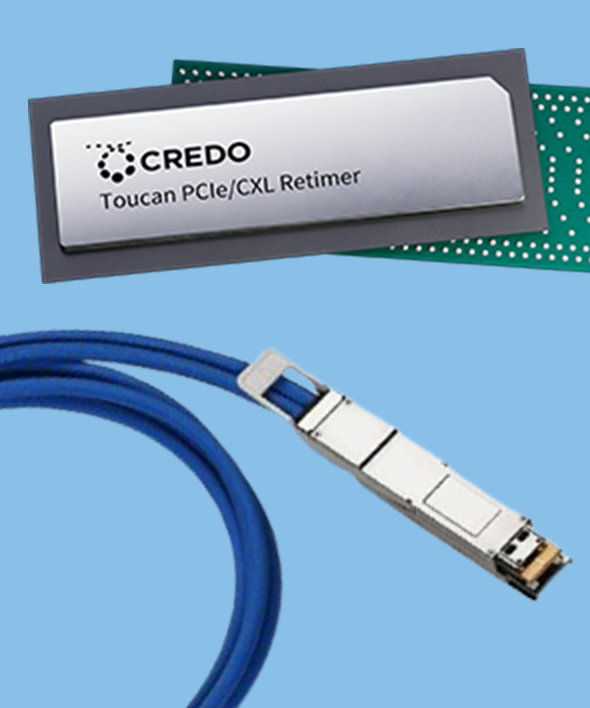

PCIe Gen6.x/CXL 3.x retimers
Credo’s Toucan line of PCIe Gen6 retimers delivers 40dB reach and sub 7ns latency at 11W, allowing designers to extend the PCIe traces while ensuring the best-in-class system performance.
PCIe retimer products
Optimized to deliver high performance, low latency and best-in-class signal integrity for extending PCIe/CXL trace length.
Toucan PCIe AEC
Process
7nm
Reach
Up to 7m
Side A Speed
1Tb
Side B Speed
1Tb
Side A Connector
OSFP-XD
Side B Connector
OSFP-XD
Media
Copper
Toucan PCIe Retimer Gen6, x16
Configuration
x16, x8, x4, x2, x1
Host Data Rate / Channel
64G/lane PAM4
Line Data Rate / Channel
64G/lane PAM4
Process
7nm
Side A Speed
1Tb
Side B Speed
1Tb
Insertion Loss
36dB
Power Supplies
.75V, 1.2V
Operating Temperature
0 to 85℃
Communication Interface
I2C, I3C, SPI, SMB
Package Size
8.9mm x 22.8mm
Toucan PCIe Retimer Gen6, x8
Configuration
x8, x4, x2, x1
Host Data Rate / Channel
64G/lane PAM4
Line Data Rate / Channel
64G/lane PAM4
Process
7nm
Side A Speed
512G
Side B Speed
512G
Insertion Loss
36dB
Power Supplies
.75V, 1.2V
Operating Temperature
0 to 85℃
Communication Interface
I2C, I3C, SPI, SMB
Package Size
8.9mm x 13.2mm
Toucan PCIe Retimer Gen5, x8
Configuration
x8, x4, x2, x1
Host Data Rate / Channel
32G/lane NRZ
Line Data Rate / Channel
32G/lane NRZ
Process
7nm
Side A Speed
256G
Side B Speed
256G
Insertion Loss
40dB
Power Supplies
.75V, 1.2V
Operating Temperature
0 to 85℃
Communication Interface
I2C, I3C, SPI, SMB
Package Size
8.5mm x 13.4mm
Toucan PCIe Retimer Gen5, x16
Configuration
x16, x8, x4, x2, x1
Host Data Rate / Channel
32G/lane NRZ
Line Data Rate / Channel
32G/lane NRZ
Process
7nm
Side A Speed
512G
Side B Speed
512G
Insertion Loss
40dB
Power Supplies
.75V, 1.2V
Operating Temperature
0 to 85℃
Communication Interface
I2C, I3C, SPI, SMB
Package Size
8.9mm x 22.8mm
Designed to scale AI
Our products meet the most demanding requirements for the build-out of next generation AI, cloud, and hyperscale networks.
Reliability
Our AEC solution stack delivers zero soft link flaps to support the lossless backend RDMA network that AI clusters are built on.
Performance
Our 1.6T optical DSP delivers high-bandwidth at 224Gbps per lane PAM4 data transmission at breakthrough energy efficiency.
Power efficiency
Our PCIe Gen6 retimer delivers 40dB reach and sub 7ns latency at 11W, extending PCIe trace lengths at low latency and low power.
Intelligent connectivity
Our PILOT platform is a powerful SDK and debug environment that enables fast time-to-market and deployment at scale.
