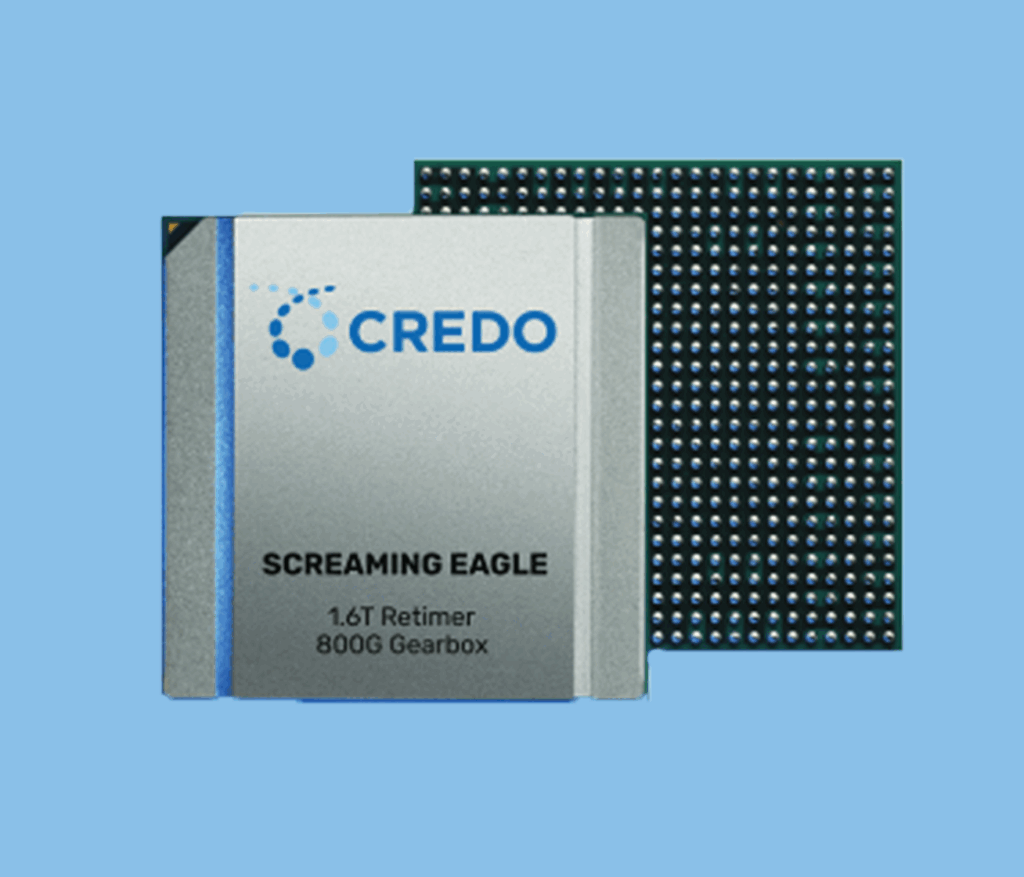

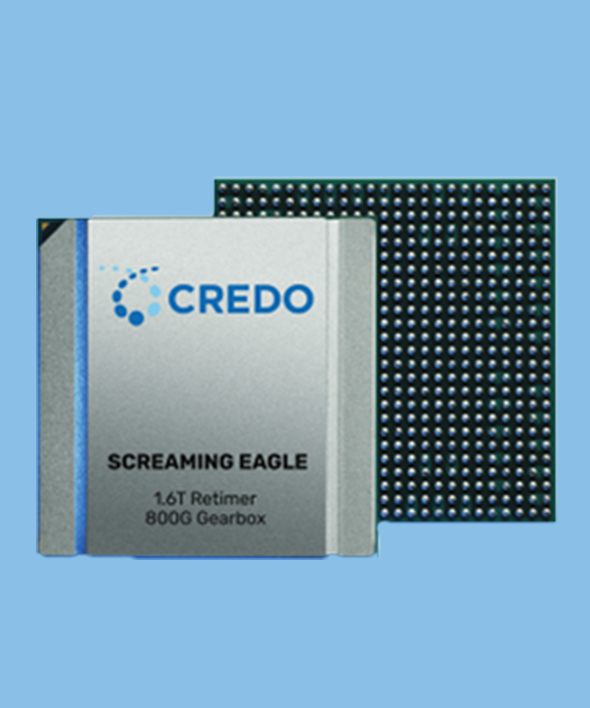

Screaming Eagle
112G Retimer
Screaming Eagle provides the bandwidth, scalability, and end-to-end signal integrity to satisfy the massive data transit requirements for cloud and hyperscale data centers.
Ethernet Retimers and MACsec Products
Dedicated and multi-mode retimers, gearboxes, and MACsec devices are built around our industry-leading SerDes IP to meet performance and power goals.
Black Hawk
Configuration
16:16; 16:8
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.8, 1.25, 1.8
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C, SPI
Process
12nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
16×50/25/10G
Side B Speed
16×50/25/10G
Applications
Hyperscale data center, 5G/service provider, AI/ML – MACSEC/IPSEC, Enterprise
Function
800G retimer, 400G gearbox
Bald Eagle
Configuration
16:16; 16:8
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.9, 1.85
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C
Process
28nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
16×50/25/10G
Side B Speed
16×50/25/10G
Applications
Hyperscale data center, 5G/service provider, AI/ML-MACSEC/IPSEC, Enterprise
Function
800G retimer, 400G gearbox
Screaming Eagle
Configuration
16:16; 16:8
Host Data Rate / Channel
100G, 50G, 25G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-112G-LR/VSR/SR
Power Supplies
0.75, 1.2, 1.5/1.8
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C, SPI
Process
12nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-112G-LR/VSR/SR
Side A Speed
16×100/50/25G
Side B Speed
16×100/50/25G
Applications
Hyperscale data center, 5G/service provider, AI/ML-MACSEC/IPSEC, enterprise
Function
1.6T retimer, 800G gearbox
Osprey 800
Configuration
16:16
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.8, 1.25, 1.8
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C
Process
12nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
16×50/25/10G
Side B Speed
16×50/25/10G
Applications
Hyperscale data center, telecom/datacom, AI
Function
800G MACsec retimer, 400G MACsec gearbox
Osprey 400
Configuration
12:12; 16:8
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.8, 1.25, 1.8
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C
Process
12nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
12×50/25/10G
Side B Speed
12×50/25/10G
Applications
Hyperscale data center, telecom/datacom, AI
Function
400G MACsec retimer, 400G MACsec gearbox
Owl 800
Configuration
16:16
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.9, 1.85
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C
Process
28nm
Package Size
23x27mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
16×50/25/10G
Side B Speed
16×50/25/10G
Applications
Hyperscale data center, telecom/datacom, AI
Function
800G MACsec retimer, 400G MACsec gearbox
Owl 400
Configuration
12:12; 16:8
Host Data Rate / Channel
50G, 25G, 10G
Line Data Rate / Channel
100G LR
Insertion Loss
CEI-56G -LR/VSR/SR
Power Supplies
0.9, 1.85
Operating Temperature
0 to 105°C
Communication Interface
MDIO, I2C
Process
28nm
Package Size
23x23mm
Media
DAC / Optics / AEC
Reach
CEI-56G -LR/VSR/SR
Side A Speed
12×50/25/10G
Side B Speed
12×50/25/10G
Applications
Hyperscale data center, telecom/datacom, AI
Function
400G MACsec retimer, 400G MACsec gearbox
Designed to scale AI
Our products meet the most demanding requirements for the build-out of next generation AI, cloud, and hyperscale networks.
Reliability
Our AEC solution stack delivers zero soft link flaps to support the lossless backend RDMA network that AI clusters are built on.
Performance
Our 1.6T optical DSP delivers high-bandwidth at 224Gbps per lane PAM4 data transmission at breakthrough energy efficiency.
Power efficiency
Our PCIe Gen6 retimer delivers 40dB reach and sub 7ns latency at 11W, extending PCIe trace lengths at low latency and low power.
Intelligent connectivity
Our PILOT platform is a powerful SDK and debug environment that enables fast time-to-market and deployment at scale.
