53G per Lane Optical DSP

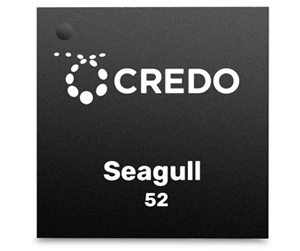

Seagull 52

Seagull 52 (CFD15201) is a versatile full-duplex device with industry-leading power dissipation that can be used in next-generation QSFP28, DSFP, and SFP56 pluggable optical transceivers. It supports 50Gbps DR/FR/LR applications based on PAM-4 modulation. Seagull 52 operates over the full industrial temperature range of -40°C to +85°C module case and is ideal for use in data centers, campuses and 5G wireless/eCPRI front-, mid- and backhaul applications.

As a dual-mode DSP, the Seagull 52 can be used as a gearbox or retimer. Integrated driver enables direct connection to DML laser, eliminating the need for external driver and simplifying the optics interface. Seagull 52 employs proprietary DSP technology and equalization techniques, especially critical in 5G wireless applications where cost-effective solutions are required, leading to wider use of DML lasers and uncooled optics.

The DSP is a high performance, robust solution that helps to compensate for the impairments and nonlinearities resulting from optics, wider temperature range and fiber. It allows optimal component placement and use of standard assembly techniques for high-yield, reliable PCB designs.

Parameters

Host Side
2x25G NRZ
1x53G PAM-4
Line Side
1x53G PAM-4
Operating Temperature
-40º to 85ºC

Features

  • DSP with industry-leading performance
  • Adaptive CTLE and multi-tap DFE and FFE
  • High performance transmitters with multi-tap FIR filters and
    non-linear cancellation
  • Integrated DML driver
  • Flexible configuration in gearbox or mux mode
  • Low latency variation
  • LOS and LOL detection
  • Diagnostic features including pattern generators and checkers,
    eye monitor and loopbacks
  • Optimized, compact firmware
  • Low power dissipation
  • Industrial temperature support -40º to 85ºC
